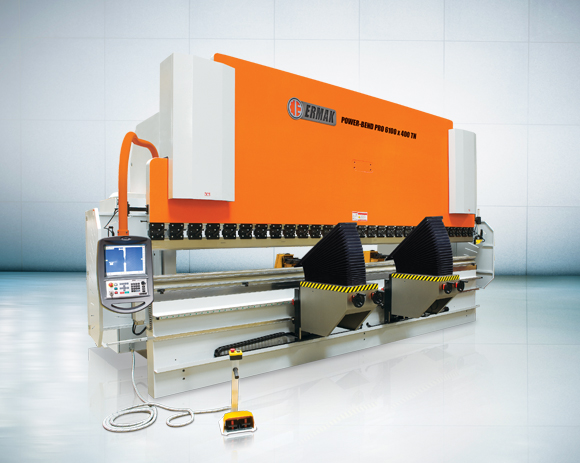

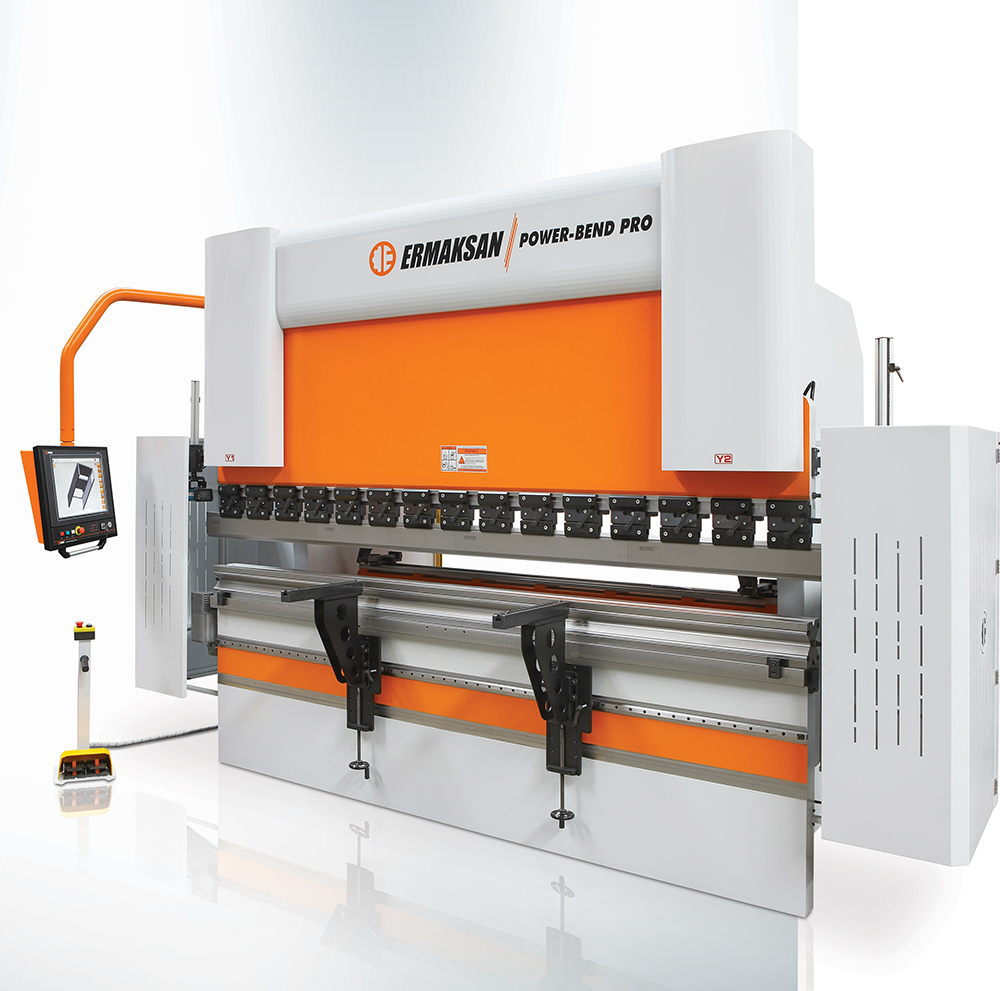

POWER-BEND PRO 3 Axes CNC Press Brake

Power-Bend Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.

STANDARD EQUIPMENT

  • Height adjustable and movable sliding front support arms.
  • Top and bottom tools are surface hardened by special treatment.
  • Promecam easy clamping system.
  • CYBELEC CYBTOUCH 12 PS 2D graphical controller with PC-ModEva 2D software.
  • CNC controlled strong X=800 mm back gauge
  • 410 mm throat depth.
  • 2 back gauge fingers
  • Scales in metric and inches.
  • Crowning system in bottom beam 3100/…/4100 - 260 - 320 manual crowning and from 400 tn and above motorized crowning is standard.
  • Foot pedal is produced according to CE standards and suitable for single and multiple bends.
  • 2 photocells are placed facing each other for rear guards.
  • Covers for cylinders and top beam
  • Preadjusted electrical requirements based on customer’s geographical area.
  • POWER-BEND PRO
  • POWER-BEND PRO

POWER-BEND PRO

OPTIONAL EQUIPMENT

  • Special stroke and throat depth gives extra advantages for deep bends.
  • Delem ER70 controller (up to 5 axis).
  • Cybelec ModEva PAC Touch controller (up to 7 axis).
  • ER90Plus controller (3D touch screen).
  • Special back gauge fingers can be added on optional backgauge stroke.
  • Motorized crowning system.
  • Hydraulic oil heating and cooling.
  • Custom made table width and bottom tool V openings.
  • Optional top and bottom tools in different length.
  • Special tools for box and pole bends.
  • Laser front guard options.
  • WILA type top and bottom tool clamping system.
  • Rol1, 2, 3, 4, 5 different top and bottom quick release clamping systems.
  • Tooling cabinet mounted to side of the machine to keep your tools clean and in easy reach.
  • Automatic sliding system is lubricated automatically which is highly recommended to extend life.
  • U type special bottom tools for bending thick materials.
  • Additional front support arms to prevent waves on thin materials.
  • Custom made machines upon customer special parameters.
  • AP3 / AP4 front sheet support arms.
  • Special parking units for front support arms.
  • Electrical panel and / or controller can be mounted on right side of machine upon customer request.
