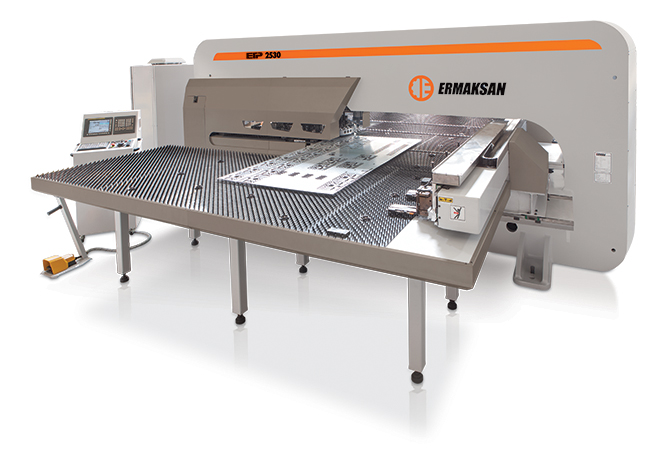

ETP CNC Turret Punch Press

ERMAKSAN is a leading brand within the punching marketplace due to its experience and quality standards. ETP CNC Turret Punch Press combines the world’s best brands in hydraulic, electronic and mechanical compounds in one machine. Specifically designed to meet customer requirements, its rigid steel structure + mono block frame allows you to punch up to 6 mm thick sheets.



STANDARD EQUIPMENT

  • 3 automatic repositioning clamps and loading switches.
  • Tool lubricating system (Airblow).
  • Free standing control panel.
  • Control with foot pedal.
  • 1 software (Lantek or Metalix).
  • User manual and maintenance catalogue.
  • 15 x A station 1/2’’ fixed 1,6-12,7 mm round
  • 12 x B station 1-1/4’’ fixed 12,8-31,7 mm round
  • 2 x C station 2’’ fixed 31,8-50,8 mm round
  • 1 x D station 3-1/2’’ fixed 50,9-88,9 mm round
  • 3 x D station 3-1/2’’ index 50,9-88,9 mm round
  • Digital oil temperature indicator.
  • Software for using wheel and forming tools.
  • Scrap box.
  • Chain protection around the machine (safety system).
  • Hydraulic oil cooling system.

ETP CNC Turret Punch Press

ETP CNC Turret Punch Press

OPTIONAL EQUIPMENT

  • Notching and forming tools for various dimensions and forms.
  • Light barrier (for CE standard machines).
  • Additional sheet holding clamps.
  • Multi tools of 3,6,8 stations.
  • Adaptors for various stations (B, C, D).
  • Special coated tools for notching stainless materials (TIN, TICN, TICN Plus, MOVIC).
  • Work chute.
  • Stainless steel table with ball bearing support.
