Die Sinking EDM

The die sinking EDM series are divided into CNC die sinking machines and ZNC die sinking machines, both series feature high quality and high efficiency. The EDM process becomes a common method of making prototype and production parts, especially in the aerospace, automobile and electronics industries. We believe that EXCETEK is your best choice of die sinking EDM manufacturer. Welcome to contact us for more specifications.

CNC Series

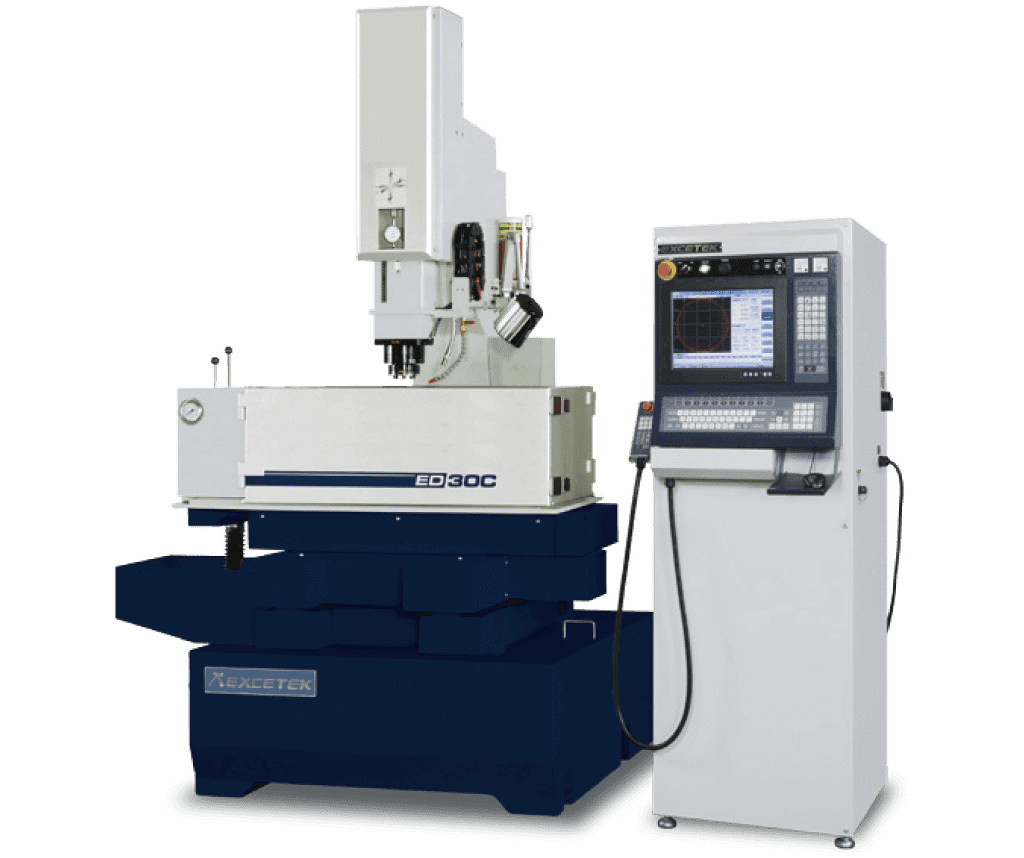

ED30C
ED30C
  • X/Y Travel : 300 x 250 mm
  • Z Travel : 300 mm
  • Work Table : 650 x 350 mm
  • Max. Work piece : 800 x 500 x 300 mm

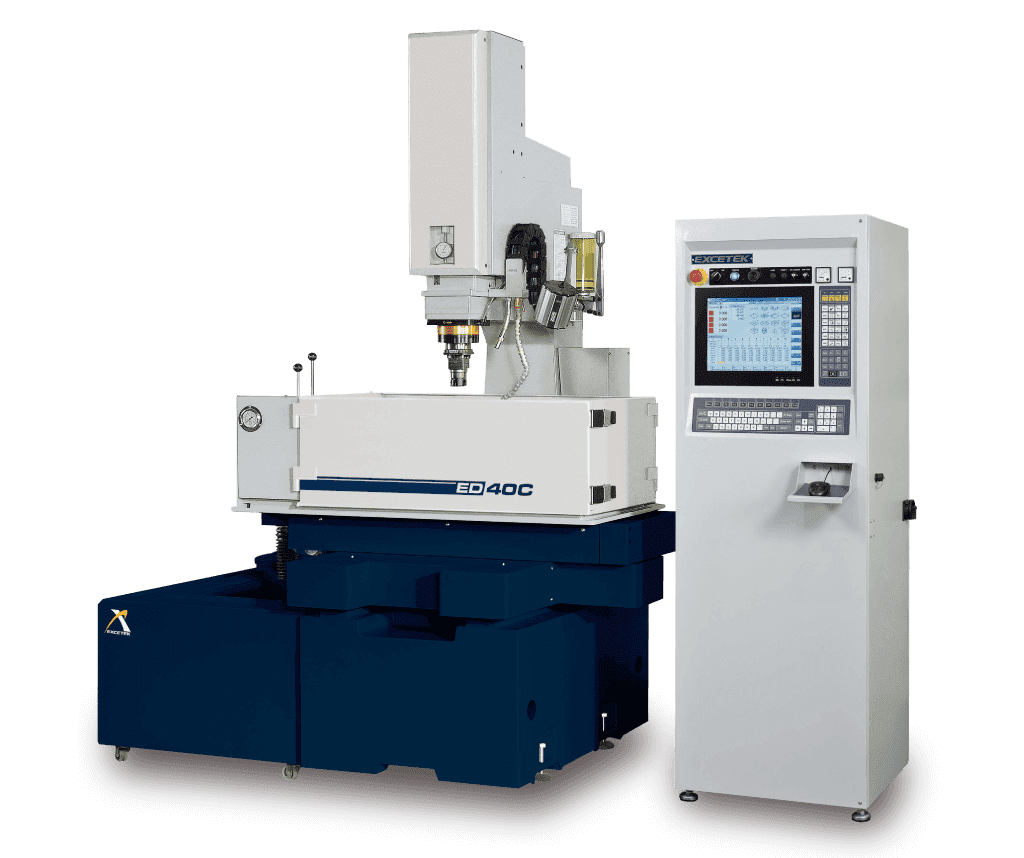

ED40C
ED40C
  • X/Y Travel : 400 x 300 mm
  • Z Travel : 300 mm
  • Work Table : 650 x 350 mm
  • Max. Work piece : 890 x 465 mm
ED400C
ED400C
  • X/Y Travel : 400 x 300 mm
  • Z Travel : 350 mm
  • Work Table : 650 x 350 mm
  • Max. Work piece : 1000 x 550 x 340 mm
ED400C CE
ED400C CE
  • X/Y Travel : 400 x 300 mm
  • Z Travel : 350 mm
  • Work Table : 650 x 350 mm
  • Max. Work piece : 1000 x 550 x 340 mm

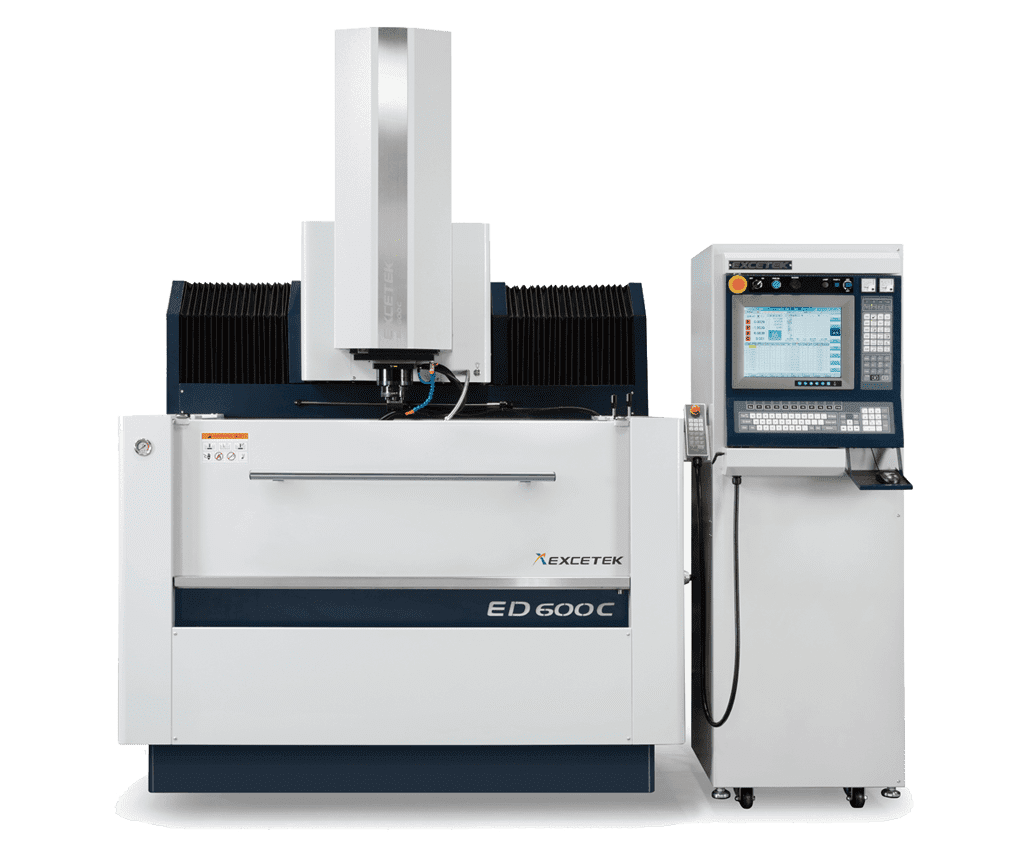

ED600C
ED600C
  • X/Y Travel : 650 x 450 mm
  • Z Travel : 400 mm
  • Work Table : 1000 x 600 mm
  • Max. Work piece : 1290 x 700 mm

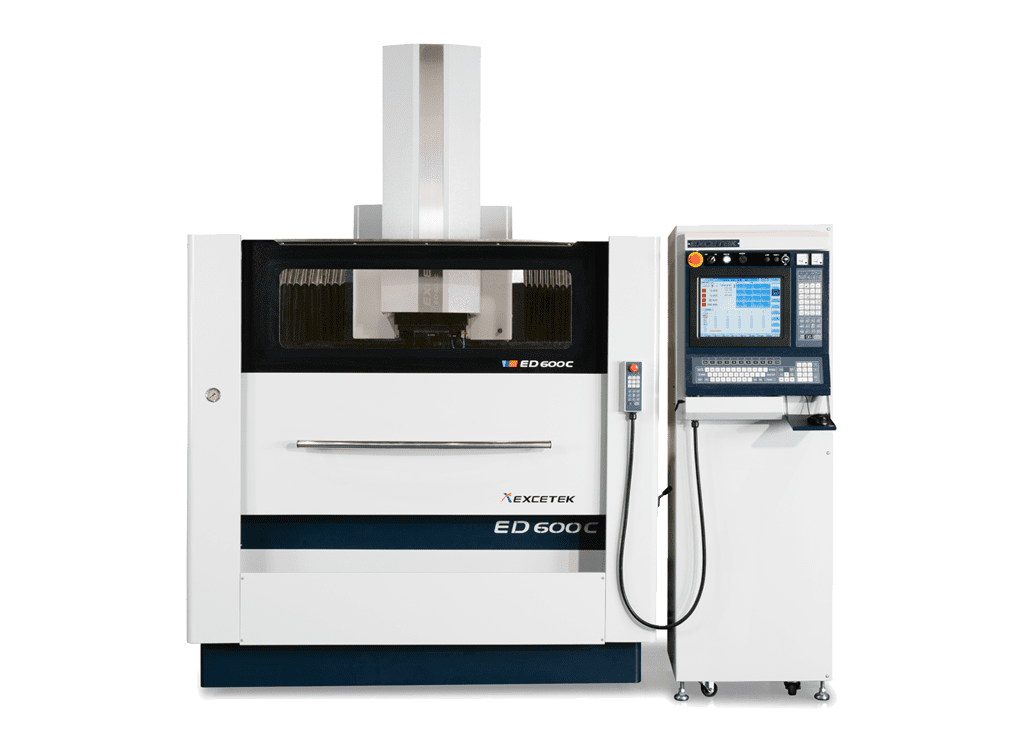

ED600C CE
ED600C CE
  • X/Y Travel : 650 x 450 mm
  • Z Travel : 400 mm
  • Work Table : 1000 x 600 mm
  • Max. Work piece : 1290 x 700 mm

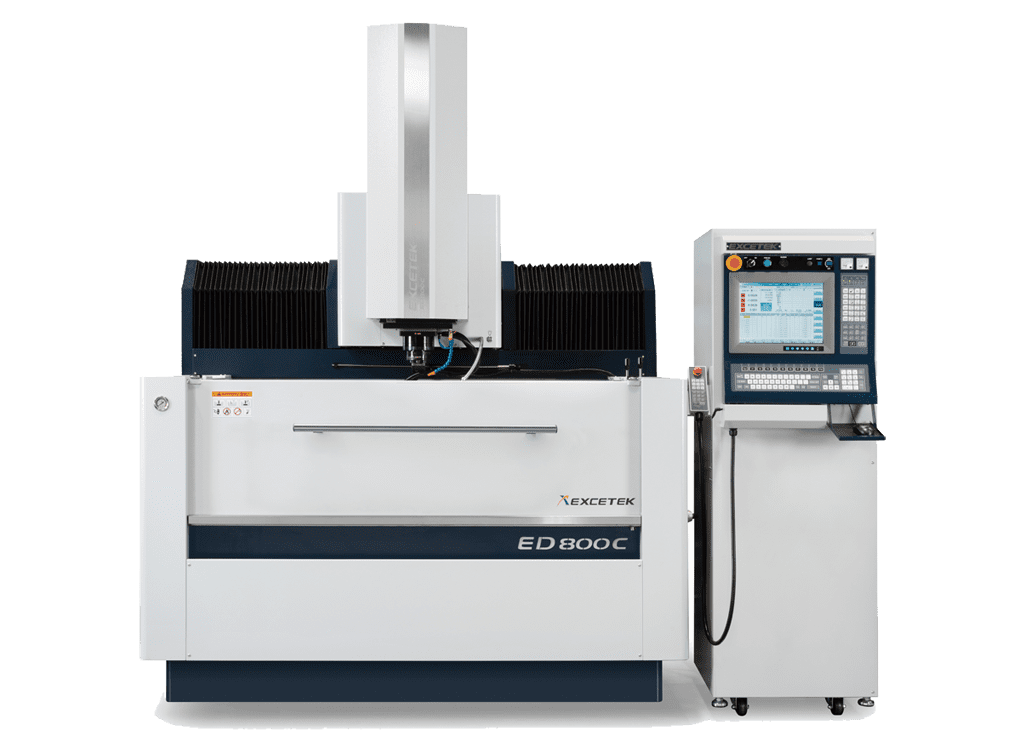

ED800C
ED800C
  • X/Y Travel : 800 x 600 mm
  • Z Travel : 500 mm
  • Work Table : 1250 x 750 mm
  • Max. Work piece : 1700 x 1000 mm

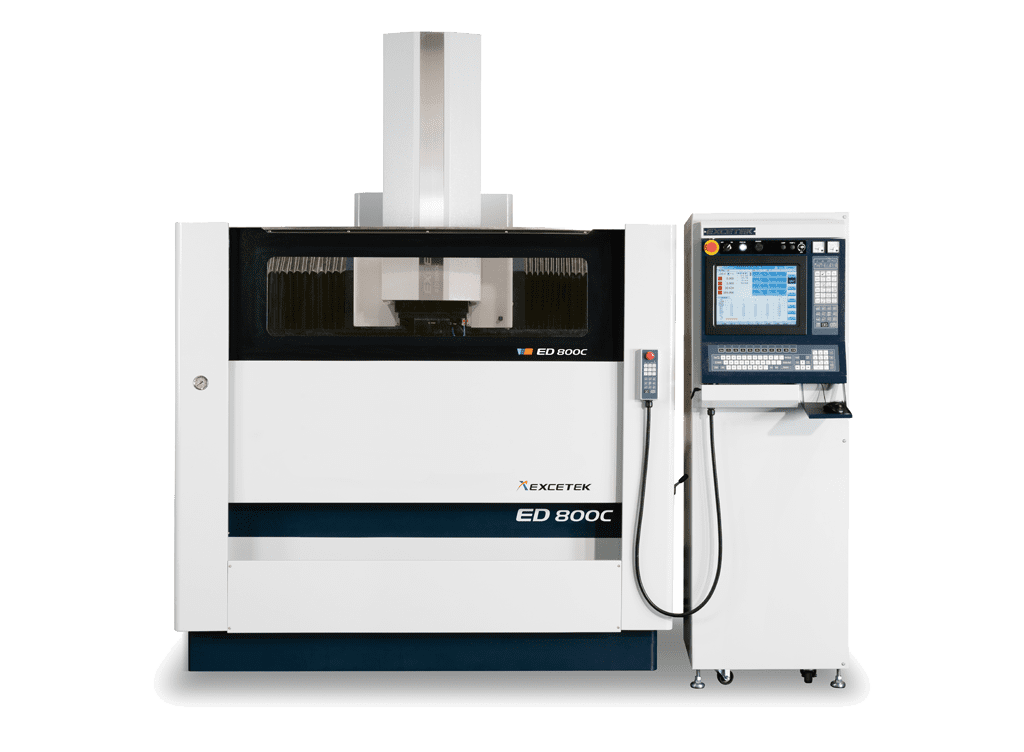

ED800C CE
ED800C CE
  • X/Y Travel : 800 x 600 mm
  • Z Travel : 500 mm
  • Work Table : 1250 x 750 mm
  • Max. Work piece : 1700 x 1000 mm

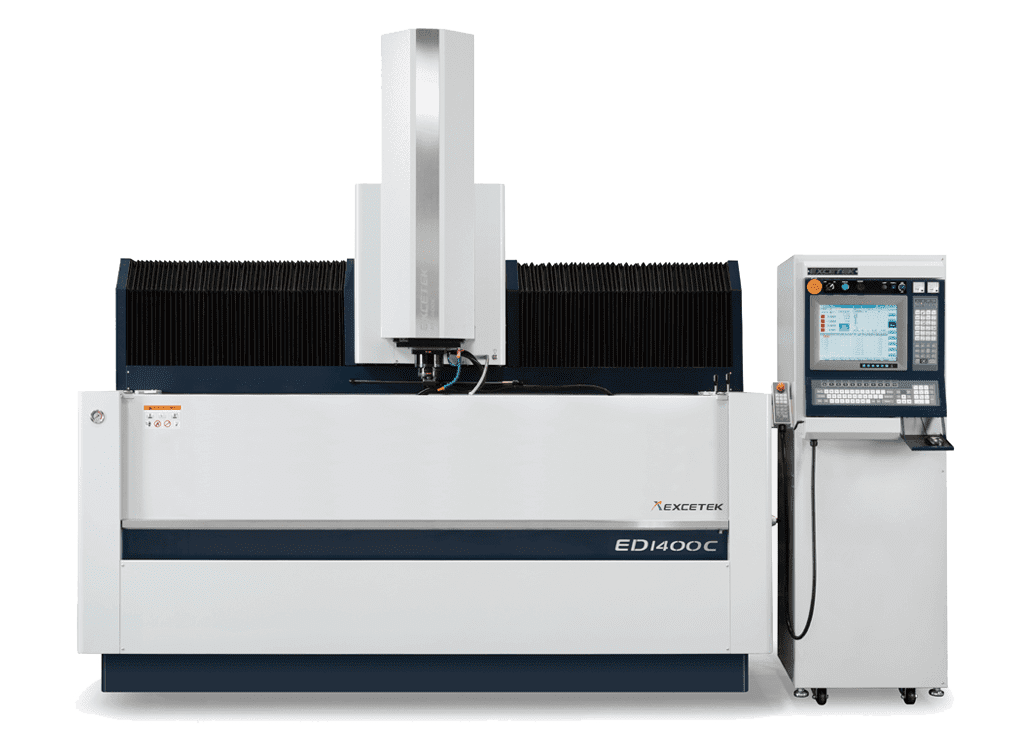

ED1400C
ED1400C
  • X/Y Travel : 1400 x 700 mm
  • Z Travel : 500 mm
  • Work Table : 1700 x 950 mm
  • Max. Work piece : 2100 x 1200 x 500 mm
ED2200C
ED2200C
  • X/Y Travel : 2200 x 1000 mm
  • Z Travel : 600 mm
  • Work Table : 2250 x 1100 mm
  • Max. Work piece : 2700 x 1600 x 700 mm
ED3000-2H CE
ED3000-2H CE
  • X/Y Travel : 2550(1275) x 400 mm
  • Z Travel : 600 mm
  • Work Table : 3100 x 1100 mm
  • Max. Work piece : 3700 x 1600 x 700 mm

ZNC Series

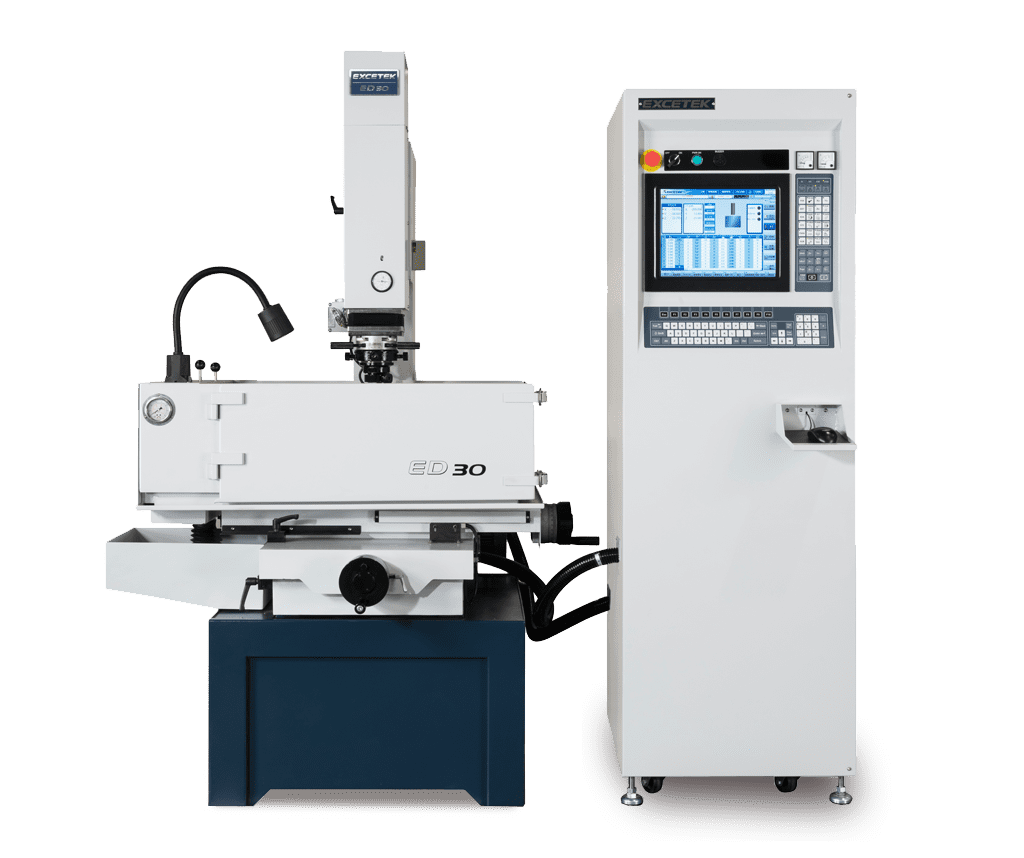

ED30Z
ED30Z
  • X/Y Travel : 300 x 200 mm
  • Z Travel : 200 mm
  • Work Table : 600 x 300 mm
  • Max. Work piece : 800 x 480 x 290 mm

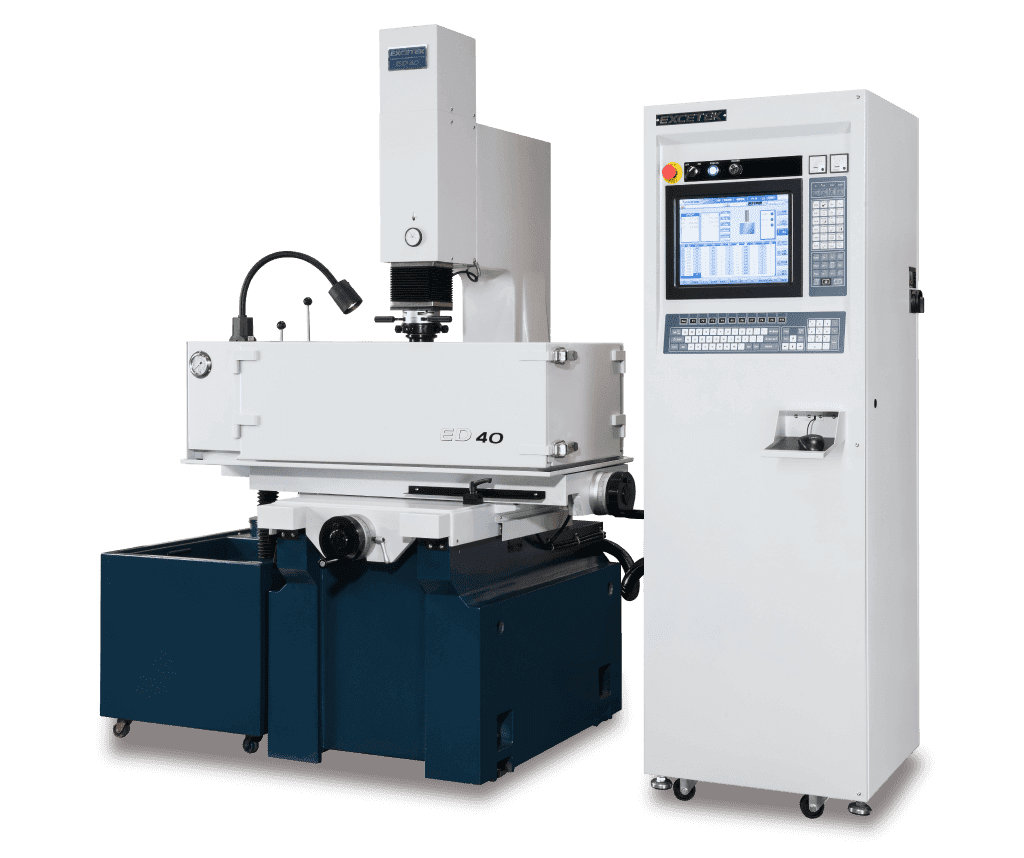

ED40Z
ED40Z
  • X/Y Travel : 400 x 300 mm
  • Z Travel : 180 mm
  • Work Table : 650 x 350 mm
  • Max. Work piece : 920 x 500 x 300 mm

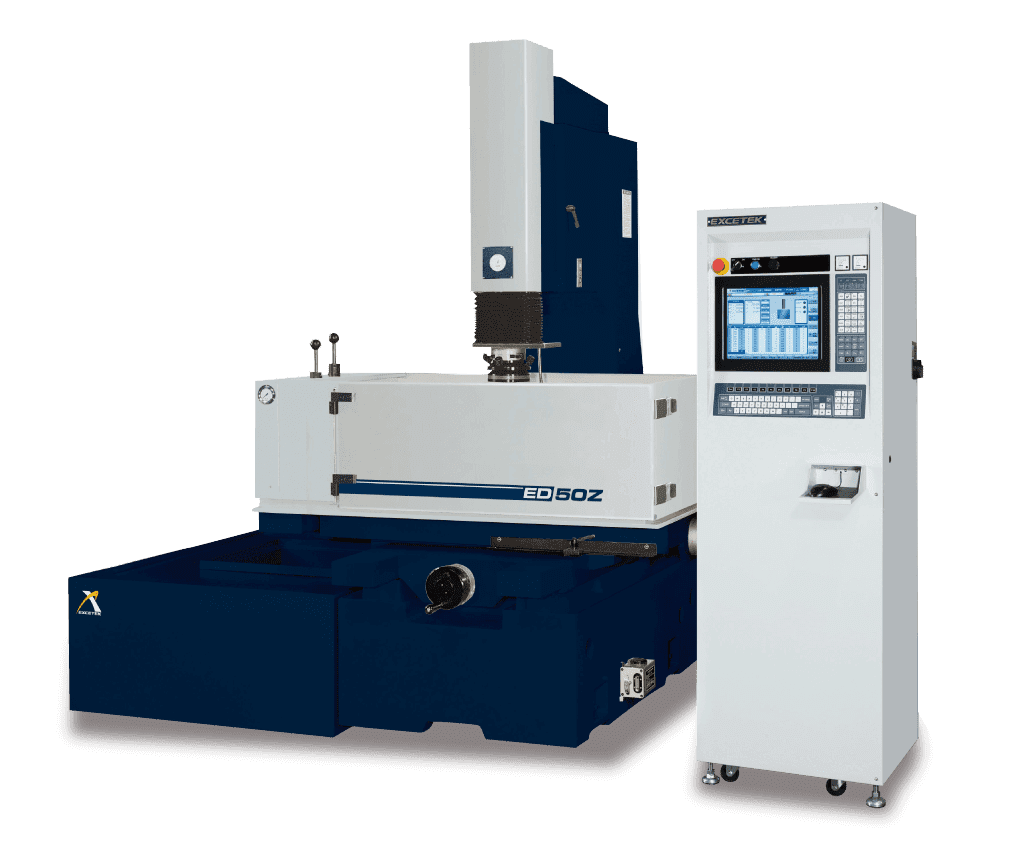

ED50Z
ED50Z
  • X/Y Travel : 500 x 400 mm
  • Z Travel : 200 mm
  • Work Table : 800 x 450 mm
  • Max. Work piece : 1120 x 640 x 375 mm

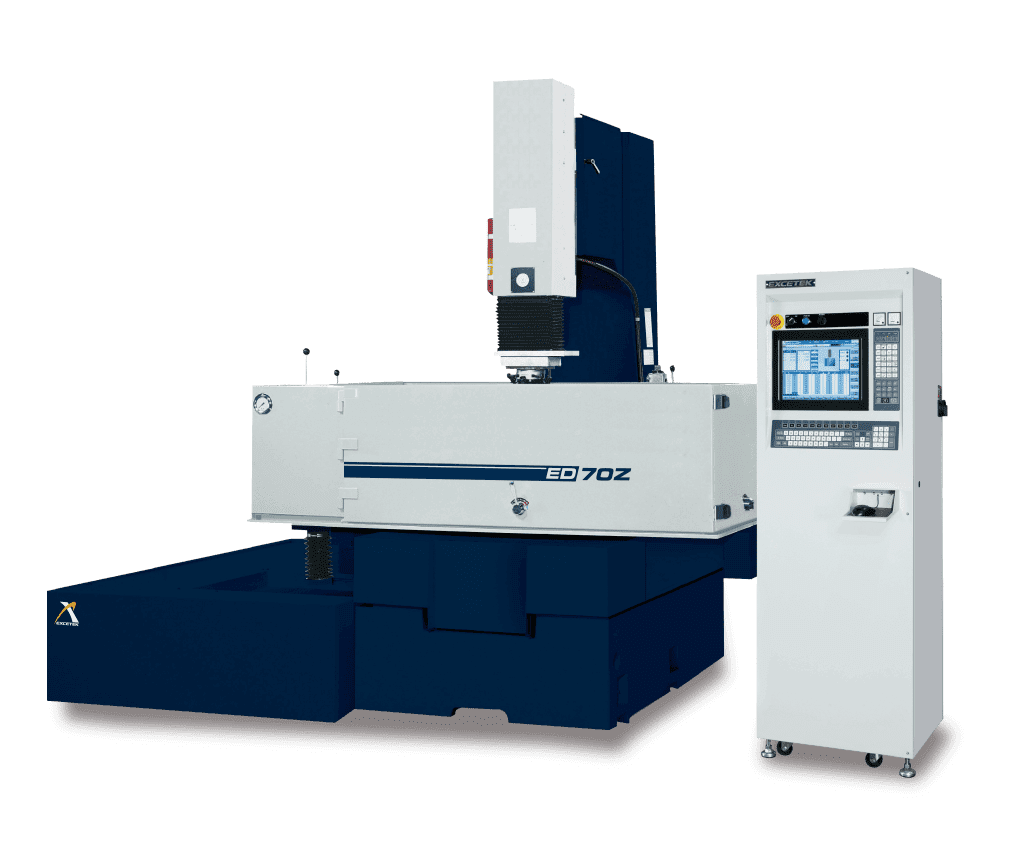

ED70Z
ED70Z
  • X/Y Travel : 700 x 550 mm
  • Z Travel : 250 mm
  • Work Table : 1100 x 600 mm
  • Max. Work piece : 1680 x 950 x 500 mm
